Welded H Type Finned Tube
Get Latest PricePayment Type: | L/C,T/T |
Incoterm: | FOB |
Min. Order: | 1 Piece/Pieces |
Transportation: | Ocean,Land |
Port: | Shanghai |
Payment Type: | L/C,T/T |
Incoterm: | FOB |
Min. Order: | 1 Piece/Pieces |
Transportation: | Ocean,Land |
Port: | Shanghai |
Brand: simcan
Selling Units | : | Piece/Pieces |

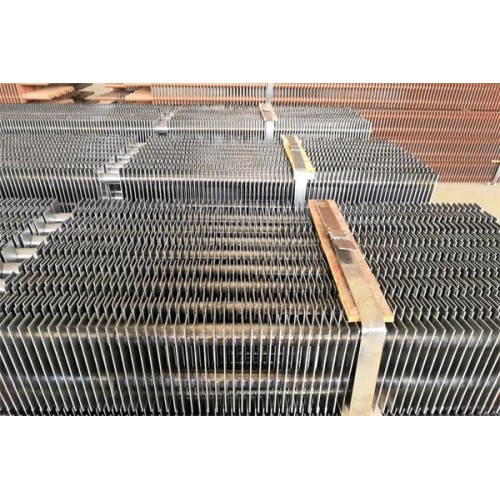

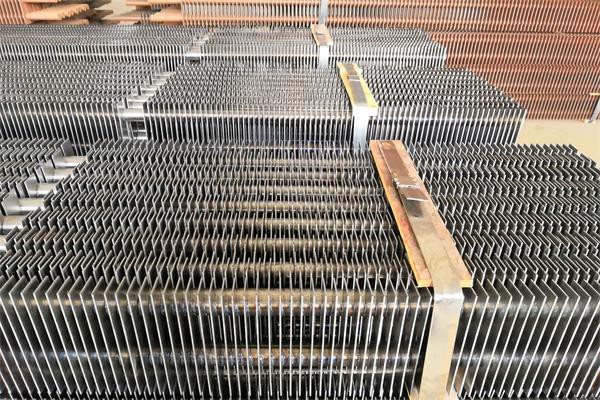

WELDED H-type FINNED TUBE

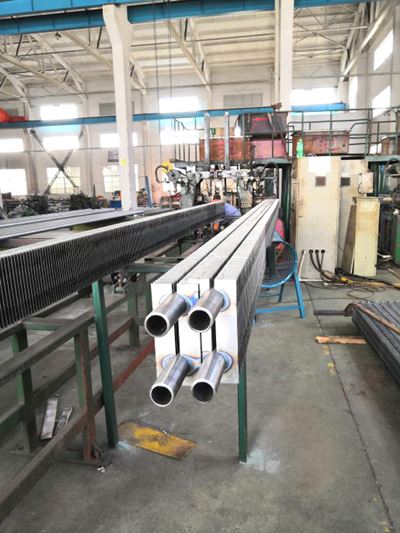

The welded H-type Finned Tube can be fabricated into a double-tube "double H" type finned tube, which has a good rigidity and can be applied to a long tube row. The H-shaped fins can achieve a good soot blowing effect by forming straight passages on both sides. The space is compact, the overall weight is greatly reduced, and the cost is reduced. The gap between the two pieces has the flow of flue gas and the scouring of the ash, because the flue gas has a high flow velocity at the gap; the tubes are arranged in a row, the resistance is small and the wear is small; the H-type fin can effectively use the flow. Space, maintain a larger fin area and wing ratio; the thickness of the fin can be arbitrarily selected according to the need of anti-wear; the fins are parallel and independent of each other, and there is no influence of the helix angle, thus facilitating ash removal.
DIMENSION AND MATERIAL
The following table shows Simcan’s manufacturing capabilities for welded H-type finned tube:
Tube O.D.: | 25.0 to 73.0 (mm) | 1/2” to 2 1/2”(NPS) |
Tube Wall Thk.: | 3.0 to 6.0 (mm) | 0.118” to 0.236” |
Tube Length: | ≤ 18,500 (mm) | ≤ 60.7 ft |
Fin Thk.: | 1.5 to 4.0 (mm) | 0.060” to 0.157” |
Fin Height: | 25.0 to 45.0 (mm) | 0.98” to 1.77” |
Fin Pitch: | 20 to 117 FPM | 1 to 3 FPI |
Fin Type: | H , HH | |
Fin Material: | C.S. (most common grade is Q235B) S.S. (most common grade are AISI 304, 316, 409, 410, 321,347 ) A.S. (most common grade is 12 Cr1MoV ) | |
Tube Material: | C.S. (most common grade: A106 Gr.B, A210, A192) S.S. (most common grade are TP304, 316, 321, 347 ) A.S.(most common grade are T/P5,9,11,22,91 ) Duplex Steel(most common grade are 2205 etc. ) | |
* This table is used as a general guide to our capabilities, please call us for any other customized cases. |
PRODUCTION CAPACITY

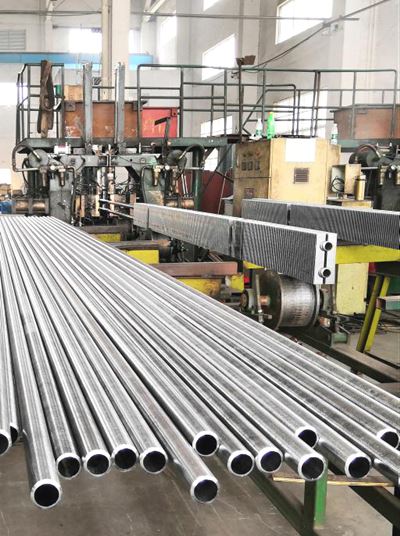

Simcan has Total six (6) welded H-type finned tube finning lines, monthly production capacity is 1200 tons in total.
