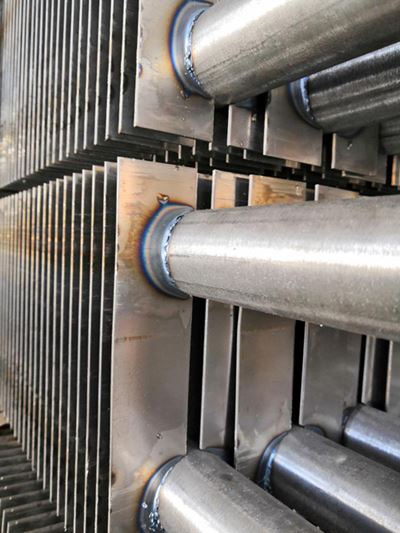

HH TYPE FIN TUBE
The HH type Fin Tube has a high expansion rate, low ash accumulation and high heat exchange efficiency. Under the condition of equivalent heat exchange capacity, the space occupied by the heat exchanger can be minimized, and the high-grade material (ie, the pressure tube) can be minimized. For new projects, the height of the heat exchanger can be reduced, the overall weight can be greatly reduced, the load of the suspension system can be reduced, and the overall cost can be reduced. For the revamp project, as much heat exchange area as possible can be arranged in a limited space to reduce the exhaust gas temperature. Improve the efficiency of waste heat recovery or increase the maintenance space for easy maintenance.
DIMENSION AND MATERIAL
The following table shows Simcan’s manufacturing capabilities for HH type Fin Tube:
| Tube O.D.: | 25.0 to 73.0 (mm) | 1/2” to 2 1/2”(NPS) |
| Tube Wall Thk.: | 3.0 to 6.0 (mm) | 0.118” to 0.236” |
| Tube Length: | ≤ 18,500 (mm) | ≤ 60.7 ft |
| Fin Thk.: | 1.5 to 4.0 (mm) | 0.060” to 0.157” |
| Fin Height: | 25.0 to 45.0 (mm) | 0.98” to 1.77” |
| Fin Pitch: | 20 to 117 FPM | 1 to 3 FPI |
| Fin Type: | H , HH | |
| Fin Material: | C.S. (most common grade is Q235B) S.S. (most common grade are AISI 304, 316, 409, 410, 321,347 ) A.S. (most common grade is 12 Cr1MoV ) | |
| Tube Material: | C.S. (most common grade: A106 Gr.B, A210, A192) S.S. (most common grade are TP304, 316, 321, 347 ) A.S.(most common grade are T/P5,9,11,22,91 ) Duplex Steel(most common grade are 2205 etc. ) | |
| * This table is used as a general guide to our capabilities, please call us for any other customized cases. | ||
PRODUCTION CAPACITY
Simcan has Total six (6) HH Type Fin Tube finning lines, monthly production capacity is 1200 tons in total.
