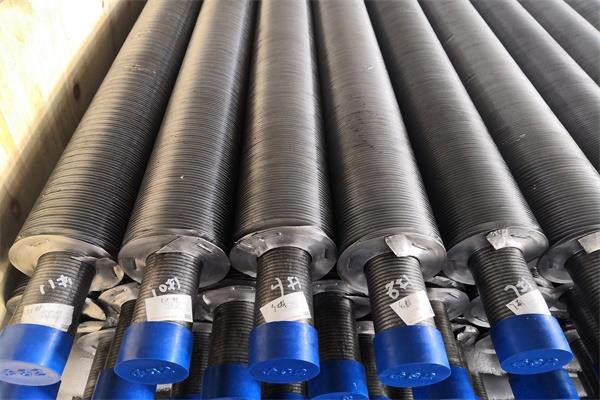

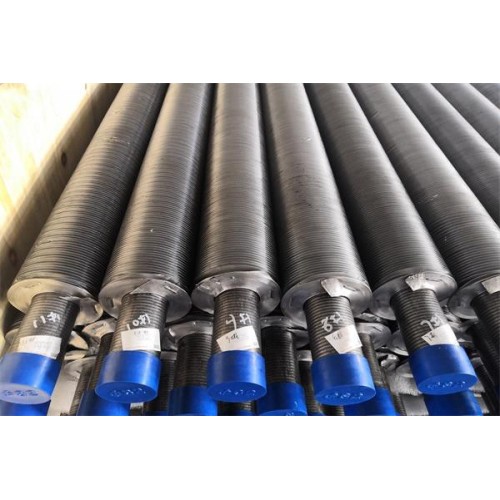

ASTM A179-Al1060 Aluminum Fin Tube
Aluminum fin tubes are used in a variety of applications, including air conditioning and refrigeration systems, heat exchangers, and industrial cooling systems. They consist of a tube made of aluminum with fins attached to the outside. The fins are typically made of aluminum or copper and are designed to increase the surface area of the tube, which improves heat transfer efficiency. The fins can be either extruded or formed from flat sheets and then attached to the tube using various methods, including soldering, brazing, or mechanical bonding. Aluminum fin tubes are lightweight, durable, and corrosion-resistant, making them ideal for use in harsh environments. They are also highly efficient, providing excellent heat transfer performance even in low-temperature applications.
Simcan manufactures most type of aluminum Fin Tubes:

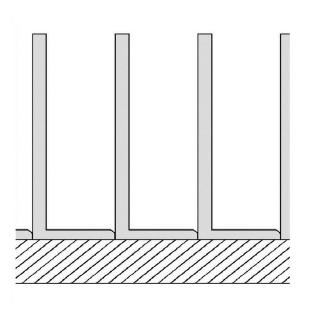

“L” type Fin Tube

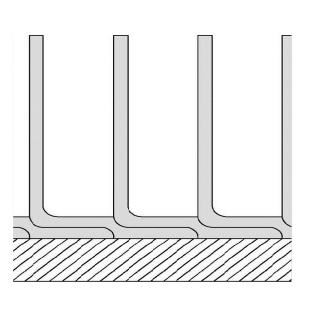

“LL” type fin tube
“KL” type fin tube

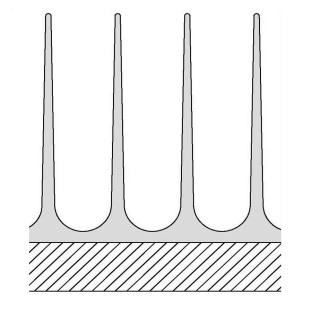

EXTRUDED FIN TUBE
DIMENSION AND MATERIAL
The following table shows Simcan’s manufacturing capabilities for Aluminum Fin Tube:
| Tube O.D.: | 19.0 to 51.0 (mm) | 3/8” to 2” |
| Tube Wall Thk.: | L, LL, KL: 1.65 to 3.0 (mm) G: 2.11 to 3.5 (mm) | L, LL, KL: 0.065” to 0.118” G: 0.083” to 0.138” |
| Tube Length: | ≤ 18,500 (mm) | ≤ 60.8 ft |
| Fin Thk.: | 0.3 to 0.5 (mm) | 0.012” to 0.02” |
| Fin Height: | 10.0 to 16.0 (mm) | 0.394” to 0.630” |
| Fin Pitch: | 100 to 433 FPM | 3 to 11 FPI |
| Fin Type: | L, LL, KL, G | |
| Fin Material: | Aluminum (most common grade: Alu.1100, Alu.1060, Alu.6063 ) Copper | |
| Tube Material: | C.S. (most common grade: A179, A192,SA210 Gr A1/C,A106 Gr B ) S.S. (most common grade: TP304, 316) Copper (most common grade: UNS12200,14200, 70600, CuNi70/30, CuNi 90/10 ) Titanium (most common grade: B338 Gr 2) | |
| * This table is used as a general guide to our capabilities, please call us for any other customized cases. | ||
PRODUCTION CAPACITY
Simcan has Total seven(7) Aluminum Fin Tube finning lines, monthly production capacity is 200,000 meters in total.
