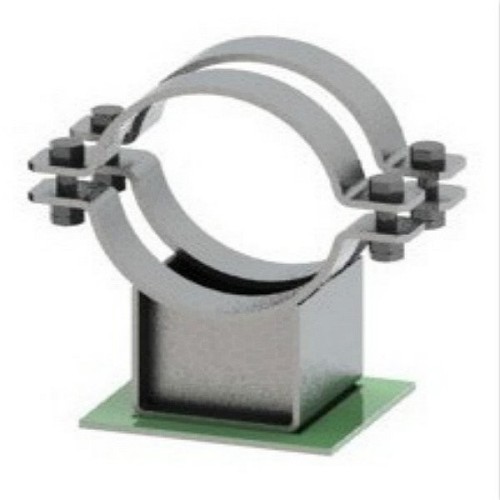

Universal Stop Type Cryogenic Insulated Pipe Shoe

Introduction

Universal Stop Type Cryogenic Insulated Pipe Shoe is designed to limit sliding distance in four respective direction. How ever the pipe shoe can be also designed to limit in single or two directions as required.

A Universal Stop Type Cryogenic Insulated Pipe Shoe is a type of pipe support used in cryogenic applications. It is designed to provide support and insulation to pipes that carry extremely cold fluids such as liquid nitrogen, liquid oxygen, and liquefied natural gas (LNG).

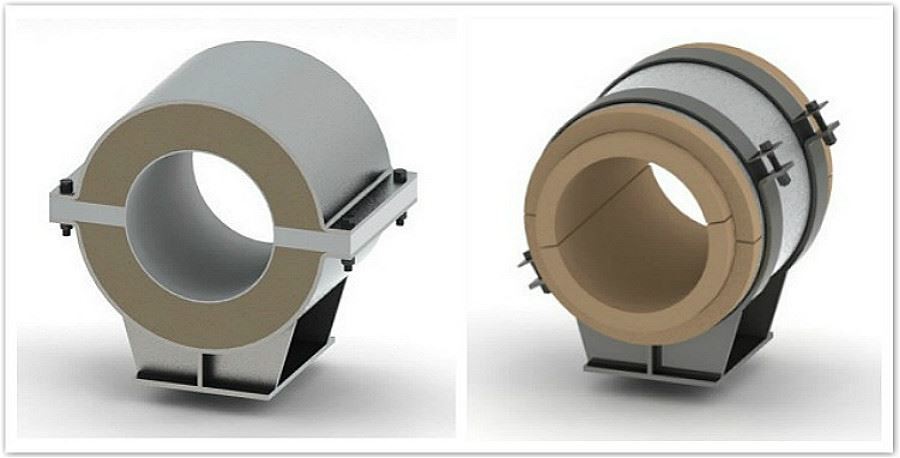

The shoe consists of a base plate, a saddle, and a stop. The base plate is attached to the support structure, while the saddle supports the pipe. The stop prevents the pipe from moving in the axial direction.

The shoe is made of materials that can withstand extreme temperatures and provide excellent insulation. The saddle is lined with high-density polyurethane foam, which provides thermal insulation and prevents the pipe from coming into direct contact with the metal support. The foam also helps to reduce heat transfer and minimize energy loss.

The Universal Stop Type Cryogenic Insulated Pipe Shoe is a versatile solution that can be used with a wide range of pipe sizes and types. It is commonly used in cryogenic storage tanks, LNG terminals, and other industrial applications where low-temperature fluids are transported.
