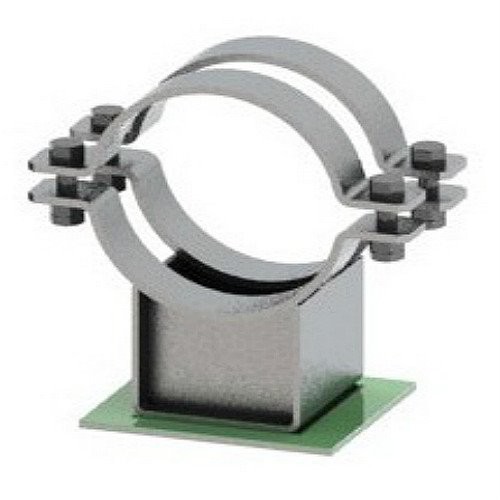

Stainless Steel Pipe Clamp Pipe Clamp

Introduction

In petrochemical and other fields, it is often necessary to transport high-temperature liquid materials through high-temperature pipelines, in order to prevent or reduce heat energy loss, high-temperature Pipe Supports or high-temperature hangers are required for the high-temperature pipelines.

Conventional high-temperature pipe supports are used in overhead pipelines for high-temperature steam or other gas transportation. The insulation layer of the heat-Insulated Pipe supports usually uses high-temperature asbestos pads as the insulation layer, and the high-temperature asbestos pads need to be wound on the working steel pipe in multiple layers In order to achieve the designed insulation thickness, its temperature resistance is low, usually only about 200 ℃, and the insulation layer is easy to age and fall off. The installation of the insulation layer is also difficult, time-consuming and laborious, and installation efficiency is low; in addition, Existing overhead pipeline insulation pipe supports are directly installed on the base, which is prone to thermal bridges, so that a large amount of heat is transferred to the base and dissipated to the surrounding environment, resulting in a large amount of heat loss, resulting in a large amount of waste of energy, which is not in accordance with energy conservation Requirements for emission reduction.

Generally, the Insulated Pipe Clamp of the Spring Hanger on the high temperature pipeline adopts the 800HT sling structure. The required material has a long lead time and is easy to cause waste of the plate; if the ordinary heat insulation Pipe Clamp is used, there is no outside the pipe clamp. In order to achieve the heat insulation effect, the thickness of the heat insulation block is large, and the weight of the heat insulation pipe frame is too heavy, which causes excessive local stress on the pipe part where the pipe frame is located, which is not safe; at the same time, such as the heat insulation pipe clamp If the internal insulation block fails, the high temperature of about 880℃ in the pipeline will radiate from the failure place, causing the temperature of some parts of the pipe clamp to rise sharply, which may lead to the risk of burns.

Product advantages

Insulated Pipe Clamp is a four-layer structure with high heat insulation, reduces heat loss, saves energy, and has the advantages of simple structure, convenient manufacturing, long service life, environmentally friendly, non-toxic and harmless; it can effectively solve the original styrene device The 800HT sling type pipe clamp structure on the medium and high temperature superheated steam pipeline often causes material waste and long supply cycle; it can not only meet the requirements of heat insulation, but also the pipe clamp of 304H material can be made in China without importing , Shorten the project construction period and reduce the project construction cost.
