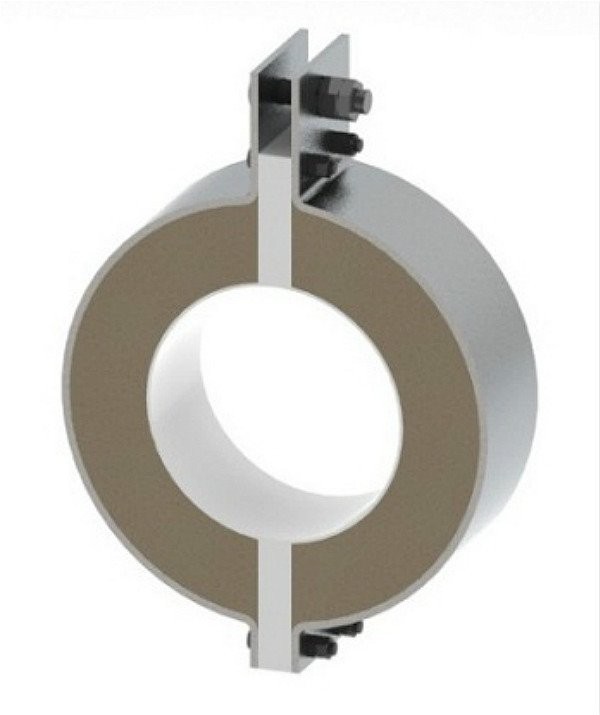

Universal Stop Type Thermal Insulated Pipe Supports

Introduction

With the continuous development of high-efficiency heat insulation materials, heat insulation materials have penetrated into all links of long-distance steam pipelines.

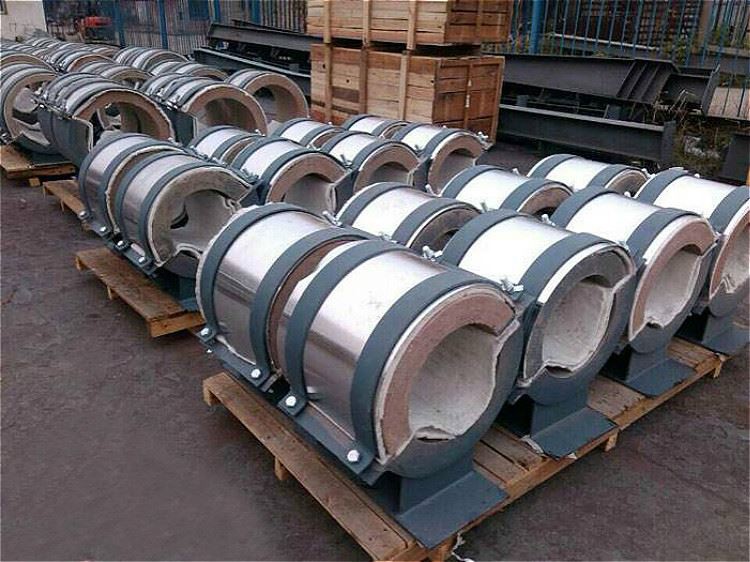

Position-limited guide heat insulation Pipe Supports, including pipeline heat preservation of tens of kilometers and heat preservation of special parts such as valves, drainage devices, pipe supports, etc. . Problems in any one of these links will affect the energy-saving effect of the entire pipeline. Taking the pipe support as an example, the pipe support usually lose the heat of the medium to the atmosphere through the support plate, the heat conduction of the ribs and the heat dissipation of the bottom plate. Through calculation and actual measurement, it can be known that the heat loss of the pipe support accounts for about 20% to 30% of the total heat loss of the pipe, and the heat insulation pipe support requires key heat preservation at this part during the construction process. The common domestic heat preservation method is to use castables as hard heat insulating materials, ceramic fiber blankets as soft heat insulating materials, the thickness of the heat insulating pipe support, and combine with steel pipe clamps to process heat insulating pipe support.
