“KL” FIN TUBE

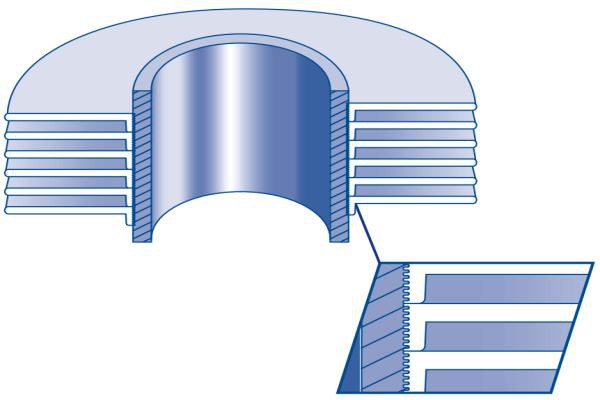

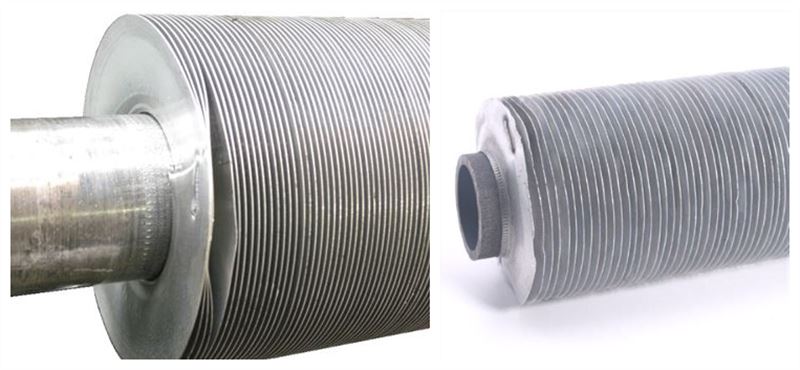

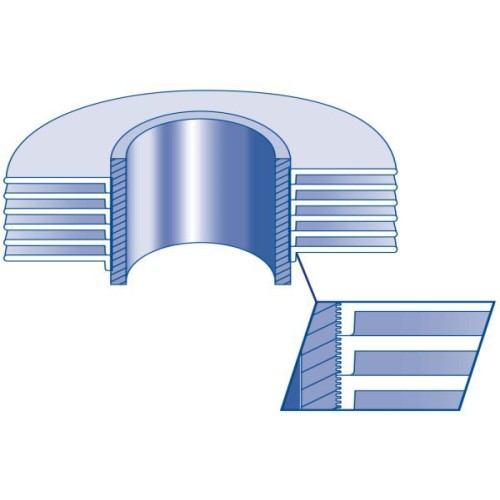

“KL” Fin Tube is also called “knurled Finned Tube”. Before fin winding, the knurling is performed on the outside surface of the base tube. After winding, the root of the L foot of aluminum fin is subjected to secondary knurling to strengthen the bond between the fin and tube. Knurling and winding are performed simultaneously. Contact area increased by about 50%.
FEATURES:
1. The highest applicable temperature is ≤260°C
2. The contact area between the fin and the tube is large, and the bond is tight and firm.
3. Good resistance to atmospheric corrosion and stable long-term performance
4. The contact thermal resistance is small, the heat transfer performance is high, and it can withstand repeated cold and heat cycles without loosening.
DIMENSION AND MATERIAL
The following table shows Simcan’s manufacturing capabilities for “KL” Fin Tube :
Tube O.D.: | 19.0 to 51.0 (mm) | 3/8” to 2” |
Tube Wall Thk.: | L, LL, KL: 1.65 to 3.0 (mm) G: 2.11 to 3.5 (mm) | L, LL, KL: 0.065” to 0.118” G: 0.083” to 0.138” |
Tube Length: | ≤ 18,500 (mm) | ≤ 60.8 ft |
Fin Thk.: | 0.3 to 0.5 (mm) | 0.012” to 0.02” |
Fin Height: | 10.0 to 16.0 (mm) | 0.394” to 0.630” |
Fin Pitch: | 100 to 433 FPM | 3 to 11 FPI |
Fin Type: | L, LL, KL, G | |
Fin Material: | Aluminum (most common grade: Alu.1100, Alu.1060, Alu.6063 ) Copper | |
Tube Material: | C.S. (most common grade: A179, A192,SA210 Gr A1/C,A106 Gr B ) S.S. (most common grade: TP304, 316) Copper (most common grade: UNS12200,14200, 70600, CuNi70/30, CuNi 90/10 ) Titanium (most common grade: B338 Gr 2) | |
* This table is used as a general guide to our capabilities, please call us for any other customized cases. |
PRODUCTION CAPACITY
Simcan has Total seven(7) “KL” Fin Tube finning lines, monthly production capacity is 200,000 meters in total.
APPLICAITONS
Simcan's “KL” Fin Tubes are mainly used in air cooled heat exchangers (fin fan cooler, air fin ) or air heaters in petrochemical, power generation, paper, tobacco, building heating system, air conditioning and food industries.
FAQ
Q1.Is the number of fins as high as possible?
A:1.When the heat transfer area of the fin is doubled, the heat transfer coefficient cannot be doubled, it will be decreased on the contrary, generally by (0.9 to 0.7) times, and the higher the fin, the larger the decrease, worst case is to 0.5. Resulting in the higher the fins, the lower the efficiency and cost effective.
2.Larger fin height or density will cause easier ash accumulation, and more difficult on ash cleaning.
3.Further more it will increase the fabrication cost and difficulties.
Q2.What is the referenced codes and standards?
API661
Material Requisition, drawings or Technical Agreement
Q3.How do you pack the products
A:Each package is designed and made according to seaworthy packing standard and clients’ handling and lifting capability.
Finned tubes will be packed into steel frameworks and wrapped with weather proof PE film and plywood board covering up. In addition, each row of finned tubes will be isolated from adjacent with EPE(Expandable Polyethylene) foam to prevent rigid impact during transportation. For all exporting packages, we only use plywood instead of wood for fumigation free purpose.
Q4:How do you guarantee the quality?
A:We are ISO certified company and we maintain strict controls according to our specific written procedures and client specifications during all phases of manufacturing of our products ensuring full materials traceability and top quality. Besides, inspection activities carried out by world reputable third party such as TÜV, BV, SGS, Lloyd's, ABS, Intertek(Moody) etc. is available on call.
Q5:Do you have design capability?
A:Yes, we could develop the shop drawings and submit for clients’ approval.
Q6:How do you handle the documentation?
A:As a professional supplier, Simcan does not only manufactures products but also has strong capability on preparing and submitting documents as listed below but not limited to:
Before Fabrication
Design and Fabrication Schedule
Drawings and data
Fabrication Procedures including WPS, PQR
Inspection and Test Plan (ITP)
During Fabrication
Daily, weekly or monthly progress report
After Fabrication
A complete set of final archive including:
Raw Material Mill Certificates
Product Conformity Certificates
Inspection Reports including Material Receipt Inspection Report, Test Report etc.
Packing List and Proforma Invoice
Certificate of Origin or any other documentation mandatory for clients’ customs clearance or tax preference
