H Type Fin Tube For Economizer
Get Latest PricePayment Type: | L/C,T/T |
Incoterm: | FOB |
Transportation: | Ocean,Land |
Port: | Shanghai |
Payment Type: | L/C,T/T |
Incoterm: | FOB |
Transportation: | Ocean,Land |
Port: | Shanghai |
Brand: simcan
Fin Material: Aluminum, Copper
Tube Material: No theoretical limit
Selling Units | : | Piece/Pieces |

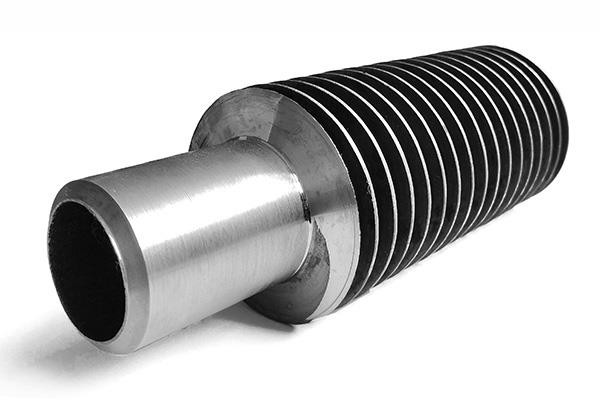

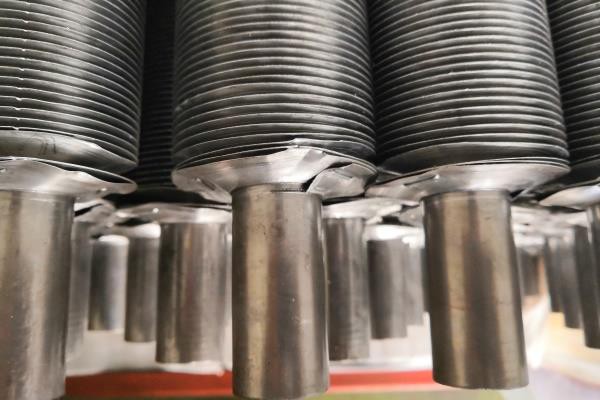

“G” type Fin Tube
The fin strip is wound into a machined groove and securely locked into place by back filling with base tube material. This ensures that maximum heat transfer is maintained at high tube metal temperatures.
G type fin tube is a type of heat exchanger tube that has fins attached to its surface. The fins increase the surface area of the tube, which enhances heat transfer efficiency. The G type fin tube has a specific shape where the fins are rectangular and flat, and they are attached to the tube using a specific welding process. This type of fin tube is commonly used in air-cooled heat exchangers, where it helps to increase the heat transfer rate between the hot fluid and the air. The G type fin tube is also used in various industrial applications like power plants, chemical processing, and refrigeration systems.
Max. Working temperature is 400 degree C
Low Air Corrosion Resistance
Medium mechanical resistance
Fin material :Aluminum, Copper
Tube material: No theoretical limit
DIMENSION AND MATERIAL
The following table shows Simcan’s manufacturing capabilities for “G” type Fin Tube:
Tube O.D.: | 19.0 to 51.0 (mm) | 3/8” to 2” |
Tube Wall Thk.: | L, LL, KL: 1.65 to 3.0 (mm) G: 2.11 to 3.5 (mm) | L, LL, KL: 0.065” to 0.118” G: 0.083” to 0.138” |
Tube Length: | ≤ 18,500 (mm) | ≤ 60.8 ft |
Fin Thk.: | 0.3 to 0.5 (mm) | 0.012” to 0.02” |
Fin Height: | 10.0 to 16.0 (mm) | 0.394” to 0.630” |
Fin Pitch: | 100 to 433 FPM | 3 to 11 FPI |
Fin Type: | L, LL, KL, G | |
* This table is used as a general guide to our capabilities, please call us for any other customized cases. |
CAPACITY
Simcan has Total seven(7) “G” type Fin Tube finning lines, capacity is 50,000 meters/week
