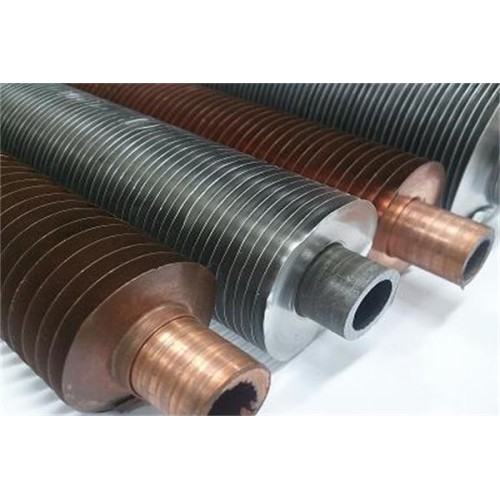

Bi Metal Fin Tube
Get Latest PricePayment Type: | L/C,T/T |
Incoterm: | FOB |
Transportation: | Ocean,Land |
Port: | Shanghai |
Payment Type: | L/C,T/T |
Incoterm: | FOB |
Transportation: | Ocean,Land |
Port: | Shanghai |
Selling Units | : | Piece/Pieces |

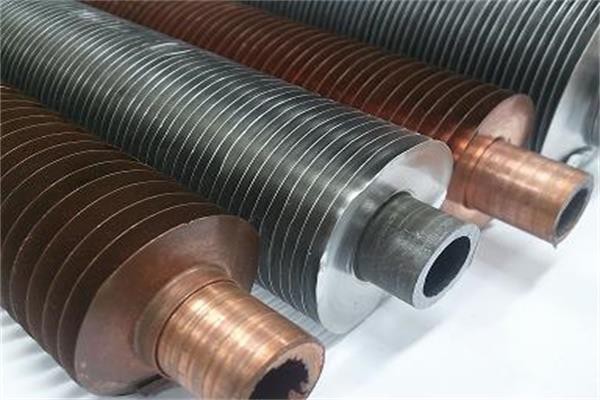

Bi-metal FIN TUBE
The Bi-metal Fin Tube refers to a Finned Tube which is composed of two different metal materials, and can also be used in combination of copper tube, aluminum tube, steel tube or stainless steel tube. The two metals combination makes the best of the each own properties.
Many of the traditional finned tubes have the disadvantage of not being able to be welded, but the Bi-metal fin tube made the difference. From the appearance and structure point of view, the bi-metal fin tube is alloyed and is very light, however it does not affect its heat transfer performance or even perform better.
Moreover, the cooling area of the finned tube is larger, so that its service life is also prolonged. In addition, the finned tube has better control ability for temperature, and is not easy to accumulate dust and waste.
Tube O.D.: | 19.0 to 51.0 (mm) | 3/8” to 2” |
Tube Wall Thk.: | 1.65 to 3.0 (mm) | 0.065” to 0.118” |
Tube Length: | ≤ 18,500 (mm) | ≤ 60.8 ft |
Fin Thk.: | 0.3 to 0.5 (mm) | 0.012” to 0.02” |
Fin Height: | 10.0 to 16.0 (mm) | 0.394” to 0.630” |
Fin Pitch: | 100 to 433 FPM | 3 to 11 FPI |
Fin Type: | L, LL, KL, G | |
Fin Material: | Aluminum (most common grade: Alu.1100, Alu.1060, Alu.6063 ) Copper | |
Tube Material: | C.S. (most common grade: A179, A192,SA210 Gr A1/C,A106 Gr B ) S.S. (most common grade: TP304, 316) Copper (most common grade: UNS12200,14200, 70600, CuNi70/30, CuNi 90/10 ) Titanium (most common grade: B338 Gr 2) | |
* This table is used as a general guide to our capabilities, please call us for any other customized cases. |
