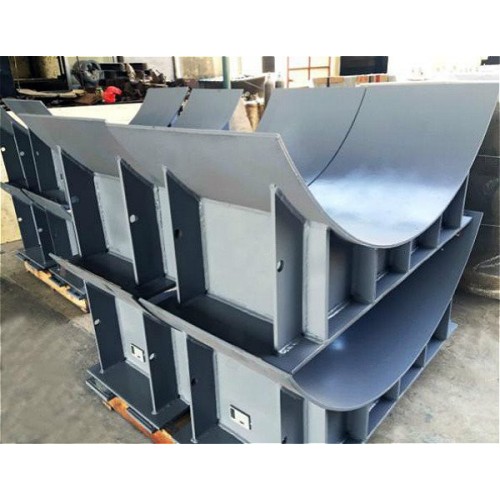

Slide Pipe Supports

Introduction

Slide Pipe Supports are suitable for various pipes, vessels, equipment and other support seats with thermal displacement design that transmit various fluid (steam, water, gas, oil, etc.).

Product Category

The Slide Pipe Supports are divided into three major categories according to the pipeline form: horizontal pipe sliding support, elbow pipe sliding support, and vertical pipe sliding support. Horizontal pipeline sliding supports are divided into three levels: T-shaped (T-shaped), square-shaped (F-shaped), and saddle-shaped (M-shaped) according to pipe diameter and load. Each level is divided into welding type (H) according to the installation form. And Pipe Clamp type (G) two kinds. According to the pipe diameter and load, the elbow pipe sliding support is divided into three levels: round pipe type (RP type), elbow type (RR type), and square pipe type (RF type). Riser-type sliding Supports are divided into riser T-shaped (LT type) and riser square (LF type) according to pipe diameter and load. Each category has four categories: axial sliding (Z), bidirectional sliding (S), guided sliding (D), and dual guided sliding (SD).

According to the temperature of the medium, this series of Slide Pipe Supports are divided into I, II, and III types.

Type I is suitable for t°≤350°C. The corresponding material that should be selected is carbon structural steel.

Type Ⅱ is suitable for 350℃＜t℃≤425℃. The corresponding materials that should be selected are high-quality carbon steel and low-alloy steel.

Type Ⅲ is suitable for 425℃＜t℃≤566℃. The corresponding material should be alloy heat-resistant steel or stainless steel.

The displacement design of this Slide Pipe Supports refers to the offset size. The design displacement is divided into four levels according to the axial displacement (50mm, 100mm, 200mm, 　400mm); according to the radial displacement design, it is divided into two levels (100mm, 200mm).
