Variable Spring Hangers
Get Latest PricePayment Type: | L/C,T/T |
Incoterm: | FOB |
Min. Order: | 1 Piece/Pieces |
Transportation: | Land,Ocean |
Port: | Shanghai |
Payment Type: | L/C,T/T |
Incoterm: | FOB |
Min. Order: | 1 Piece/Pieces |
Transportation: | Land,Ocean |
Port: | Shanghai |
Selling Units | : | Piece/Pieces |
Introduction
The Variable Spring Hangers are suitable for various pipelines and equipment that generate thermal displacement during operation. It is used to bear load, relieve vibration and limit the displacement. Because of its stable support, easy installation and reliable operation, variable Spring Hanger is widely used in places of power station boiler proper, steam pipes, water pipes, flue gas and air ducts etc., as well as equipment of petrochemical industry and other places that need to be suspended or supported. The load of Variable Spring Hangers will change according to the change of vertical displacement. When locked, spring hangers are in a rigid state and can withstand the negative loading of pipeline flushing, hydraulic pressure and air pressure tests. After long-term practical application, the operation effect is good.
CODES AND STANDARDS
1.VGB-R 501L Standard Supporter and Hanger
2.KTA 3205.1/2/3 Nuclear regulations
3.MSS SP 58 Pipe Hangers and Supports Materials, Design and Manufacture
4.MSS SP 69 Pipe Hangers and Supports–Selection and Application
5.ASME B31.1 Process Piping
6.ASME III Div.1-NF Rules for Construction of Nuclear Facility Components
7.GB / T 17116.1/2/3-1997 Pipe Supports and hangers
8.JB/T8130.2-1999 Variable Spring Hanger and Support
9.D-ZD-2010 Power Plant Steam Pipe Hanger Design Manual
parameters
Displacement range: 0-120mm. Divides into 30, 60, 90, 120mm four stages.
Load range: 154-217384N
Operating temperature range: -20~200℃.
structure form
Description | Type | Fixed Form | Figure |
Hanger | Type A | Upper thread suspension type, the top can be connected to the rooting point above through the screw and accessories to suspend the pipe or equipment below |
|
Type B | Single-ear suspension type, the top can be connected to the rooting point above through U-shaped suspension ears to suspend the pipe or equipment below | ||
Type C | Double-ear suspension type, the top can be connected to the rooting point above through a single-hole lifting ear to suspend the pipe or equipment below | ||
Placed Hanger | Type D | The upper adjustment type, fixed on the rooting surface, use the screw to pass through the spring body and fixed with the hexagon nut to suspend the pipe or equipment below |
|
Type E | The lower adjustment type, fixed on the rooting surface to suspend the pipe or equipment below | ||

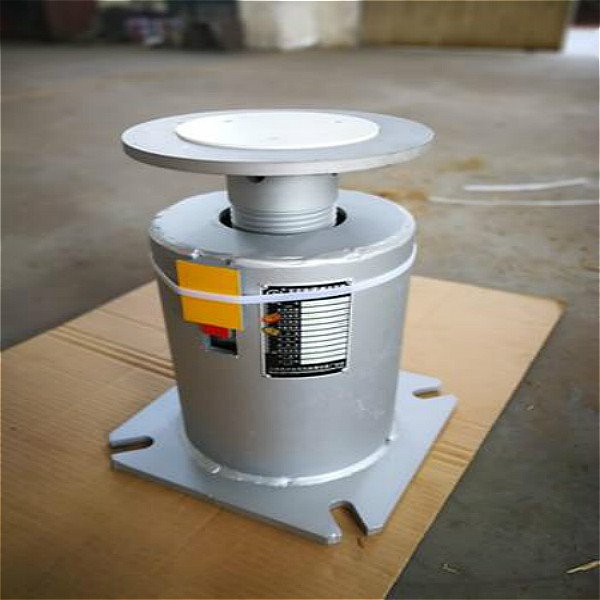

Support | Type F | Support placed type, fixed to the rooting surface or foundation platform, the top plate supports the upper pipe support or seat to support the upper pipe or equipment |
|
Parallel Hanger | Type G | Parallel suspension type, using screw attachments to fix at the rooting place above, the middle steel can set up support to suspend the pipe or equipment below |
|
FAQ
Q1. What is the standard for your variable spring hanger?
A: We manufacture according to requirements specified as below:
NB/T47039-2013 Variable spring hangers
D-ZD2010 Design manual for support and hanger of steam pipe in power plant
GB/T 17116.1-2018 Pipe supports and hangers- Technical specification
Q2. Does your company have the ability to design spring hangers?
A: Our company has professional technical designers. If you are not sure about the selection of spring hangers, you can provide the basic parameters to us, our company will select the spring hangers for you and provide you with a drawing to confirm.
