Variable Hangers Type A

Introduction

Variable Hangers Type A are also defined as upper suspension type connected via threaded rod based on the connection requirement. The threaded rod could be stud bolt or with full thread.

Variable Hangers Type A is equipped with a cylindrical spiral spring, which can adapt to the thermal displacement of the pipe or equipment and absorb the vibration of the pipe at the same time. It can also play the role of "anti-vibration, plus it is more economical than the constant Spring Hanger. Therefore, it is widely used by designers when the stress calculation allows.

Technology parameters

l Displacement range: 0~120mm @ 30, 60, 90,120mm.

l Load range: 154~217384N

l Operating temperature range: -20~200℃(For out range temperature material to be tailored)

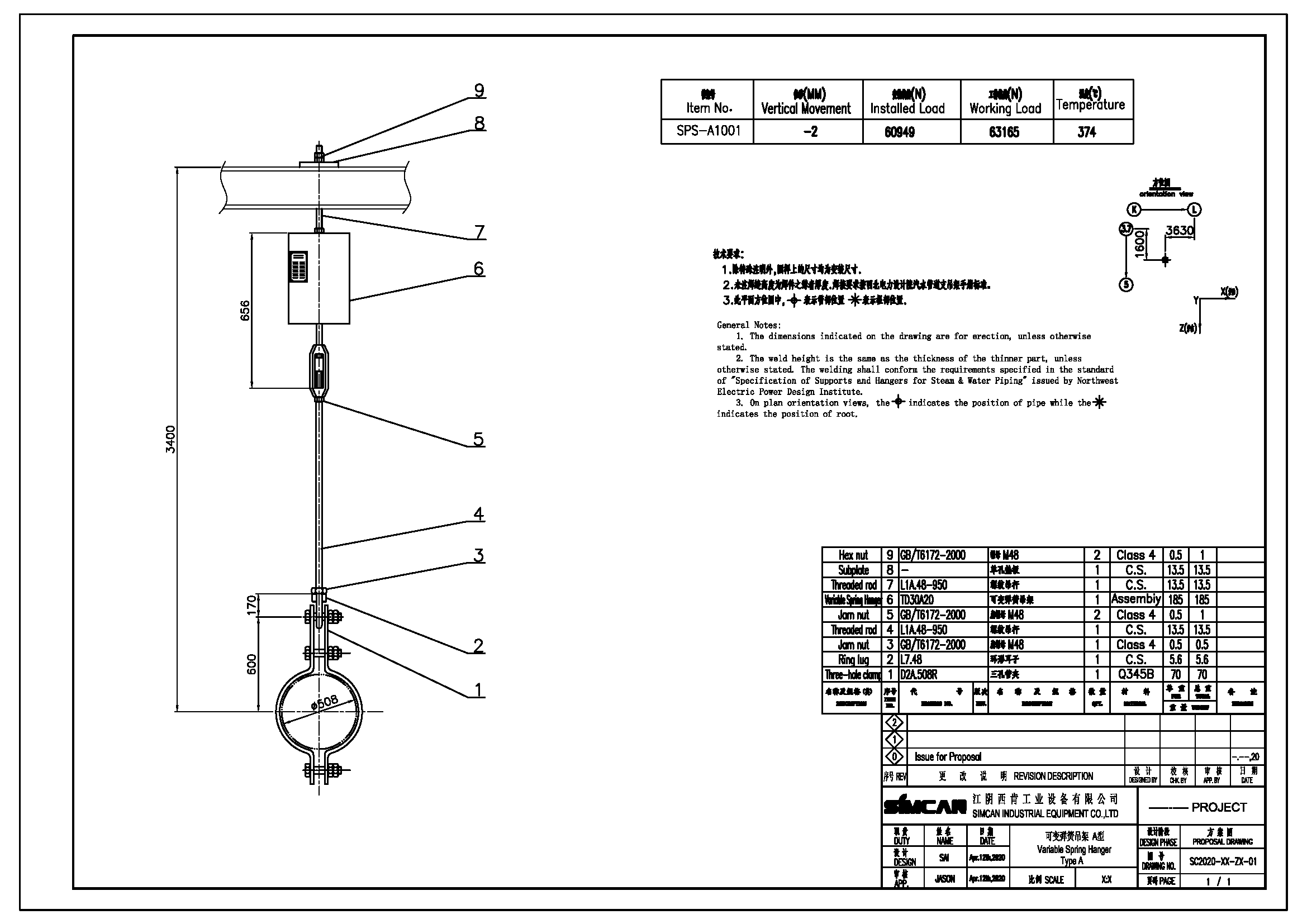

Sample Drawing
