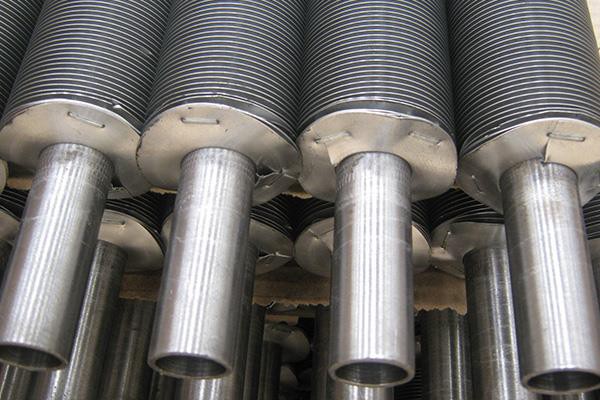

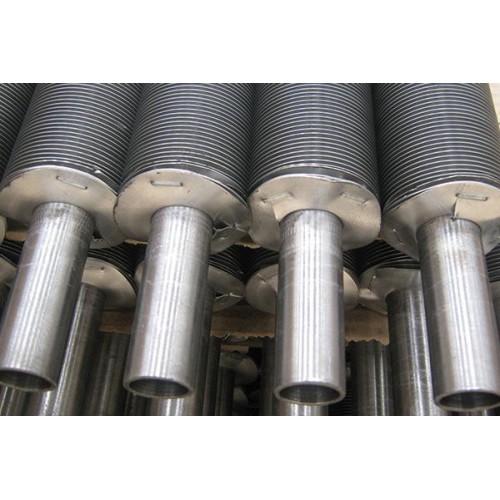

L FOOT Fin Tube
The trapezoidal section formed by the L foot fin tube is combined with the heat flux density distribution, the tube piece is tightly combined, and the thermal efficiency is high, which eliminates the contact thermal resistance caused by the inability of the tube piece fin gap to be eliminated. Working temperature could be up to 150 ° C
FEATURES:
The winding process is adopted, the production efficiency is high, the fin pitch is uniform, the heat transfer performance is good, the fin to tube ratio is high, and the base pipe can be protected from air erosion.
DIMENSION AND MATERIAL
The following table shows Simcan’s manufacturing capabilities for L Foot Fin Tube:
| Tube O.D.: | 19.0 to 51.0 (mm) | 3/8” to 2” |
| Tube Wall Thk.: | 1.65 to 3.0 (mm) | 0.065” to 0.118” |
| Tube Length: | ≤ 18,500 (mm) | ≤ 60.8 ft |
| Fin Thk.: | 0.3 to 0.5 (mm) | 0.012” to 0.02” |
| Fin Height: | 10.0 to 16.0 (mm) | 0.394” to 0.630” |
| Fin Pitch: | 100 to 433 FPM | 3 to 11 FPI |
| Fin Type: | L, LL, KL, G | |
| Fin Material: | Aluminum (most common grade: Alu.1100, Alu.1060, Alu.6063 ) Copper | |
| Tube Material: | C.S. (most common grade: A179, A192,SA210 Gr A1/C,A106 Gr B ) S.S. (most common grade: TP304, 316) Copper (most common grade: UNS12200,14200, 70600, CuNi70/30, CuNi 90/10 ) Titanium (most common grade: B338 Gr 2) | |
| * This table is used as a general guide to our capabilities, please call us for any other customized cases. | ||
PRODUCTION CAPACITY
Simcan has Total seven(7) L/LL/KL/G type finning lines, monthly production capacity is 200,000 meters in total.
APPLICAITONS
Mainly used in the air coolers of petrochemical, electric power, paper, tobacco, building heating and other industries, air heaters and air-heaters for spray drying systems such as vegetable starch in the food industry.
